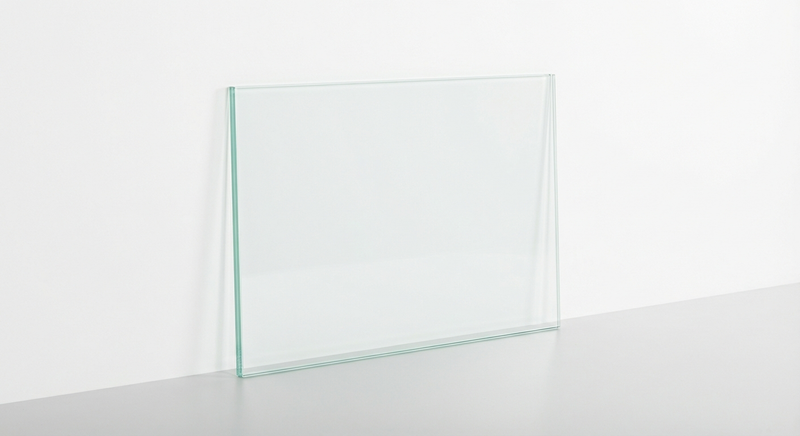

Images are for illustration purposes only.
7.2mm Pyroguard Satin EW30 - 30/0
SKU: TGSO-72MMPYROGUARDSAT
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Technical Specifications
| Thickness | Multiple options available — see product title |
| Standard / Certification | BS EN 13501-2 (Fire Resistance Classification) |
| Maximum Area | Please contact us for maximum size guidance |
| Lead Time | Confirmed in your order confirmation email |
| Edge Treatment | Machine polished as standard |
| Finish | Clear / as specified — tinted options available on request |
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Glazed partitions — timber and steel framed (30/0 single glazed and IGU)
Steel doorsets (30/0 single glazed)
Timber based doorsets (30/0 single glazed)
Timber based doorsets (60/0 single glazed)
Timber stile & rail doorsets (30/0 single glazed)
Steel framed screens (30/0 single glazed)
Timber framed screens (30/0 single glazed)
IGUs in timber framed screens (30/0)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
7.2mm Pyroguard Satin EW30 is a multi-laminated fire-resistant glass with a satin (acid-etched) finish, providing 30 minutes of integrity and radiated heat protection (EW30 classification). It combines fire performance with a translucent aesthetic, making it ideal for privacy screens, office partitions, and fire doors where a frosted appearance is required.
Technical Specifications
- Fire Classification: EW30
- Fire Rating: 30 minutes Integrity / Radiated Heat Protection
- Thickness: 7.2mm
- Thickness Tolerance: ±1mm
- Impact Classification: 2(B)2 (EN 14449)
- Light Transmission: 87% (base glass)
- Sound Reduction: 33 dB
- U Value: 5.7 W/m²K
- UV Stability: Yes
- Finish: Satin (acid-etched one face)
- Grade: Internal and External
- Standard: BS EN 13501-2
- Certifire Certificate: CF257
Certified Applications
- Glazed partitions — timber and steel framed (30/0 single glazed and IGU)
- Steel doorsets (30/0 single glazed)
- Timber based doorsets (30/0 single glazed)
- Timber based doorsets (60/0 single glazed)
- Timber stile & rail doorsets (30/0 single glazed)
- Steel framed screens (30/0 single glazed)
- Timber framed screens (30/0 single glazed)
- IGUs in timber framed screens (30/0)
Frame Compatibility
- Steel
- Timber
- Aluminium
Key Features
- EW30 fire classification — 30 minutes integrity and radiated heat protection
- Satin finish — translucent privacy without sacrificing fire performance
- 2(B)2 impact classification — meets safety glazing requirements
- Suitable for interior and exterior use
- Double-sided fire resistance
- UV stable — no yellowing or discolouration over time
- Certifire approved (CF257)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
