10mm pyrodur ew60 600
Images are for illustration purposes only.

10mm Pyrodur EW60 - 60/0

SKU: TGSO-10MMPYRODUREW606

Fire Rated Glass — Request a Quote

Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.

mm
mm

Or call / WhatsApp: 07787 704925

Technical Specifications
ThicknessMultiple options available — see product title
Standard / CertificationBS EN 13501-2 (Fire Resistance Classification)
Maximum AreaPlease contact us for maximum size guidance
Lead TimeConfirmed in your order confirmation email
Edge TreatmentMachine polished as standard
FinishClear / as specified — tinted options available on request
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Timber fire-rated frames — single glazed (60/0)
Single and double glazed units in steel fire-rated frames
Fire door vision panels in timber and steel frames
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.

About This Product

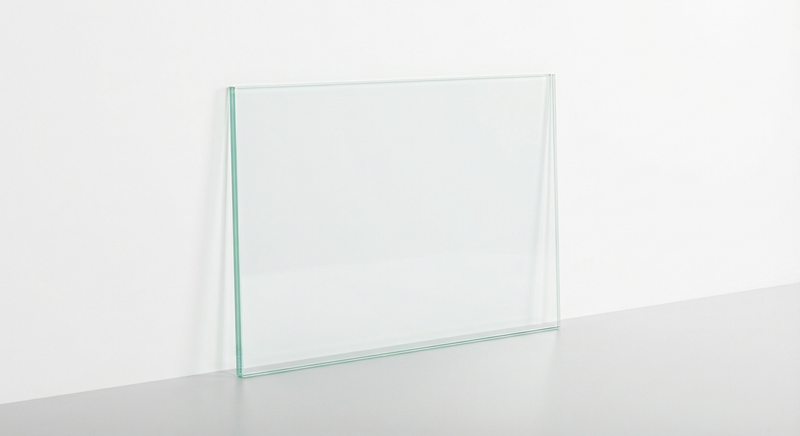

10mm Pyrodur EW60 is a toughened borosilicate fire-resistant glass providing 60 minutes of integrity and radiated heat protection (EW60 classification). An interior-grade product with excellent optical clarity and acoustic performance, it is certified for use in single and double-glazed configurations in timber and steel fire-rated frames, including fire doors.

Technical Specifications

  • Fire Classification: EI15 / EW60
  • Fire Rating: 60 minutes Integrity / Radiated Heat Protection
  • Reaction to Fire: A2-s1,d0
  • Thickness: 10mm
  • Thickness Tolerance: ±1mm
  • Impact Classification: 2(B)2 (EN 12600)
  • Sound Reduction: 35 dB (-1;-2)
  • U Value: 5.4 W/m²K
  • Light Transmittance: 0.88
  • g Value: 0.77
  • Temperature Tolerance: 40K
  • Grade: Internal
  • Standard: BS EN 13501-2
  • Certifire Certificate: CF328

Certified Applications

  • Timber fire-rated frames — single glazed (60/0)
  • Single and double glazed units in steel fire-rated frames
  • Fire door vision panels in timber and steel frames

Frame Compatibility

  • Steel
  • Timber

Key Features

  • EW60 fire classification — 60 minutes integrity and radiated heat control
  • Reaction to fire class A2-s1,d0 — virtually non-combustible
  • 2(B)2 impact classification — meets safety glazing requirements
  • 35 dB sound reduction for acoustic performance
  • High light transmittance (0.88) — excellent clarity
  • Interior use only
  • Ideal for fire doors in commercial and public buildings
  • Certifire approved (CF328)

Important Information

Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.

  • Edge clearance: 4–5mm required
  • Lateral clearance: 4–5mm required
  • Rebate depth: minimum 20mm
  • Operating temperature range: -20°C to +40°C
  • Store in dry, ventilated conditions away from direct sunlight
  • Never allow water contact with glass edges
