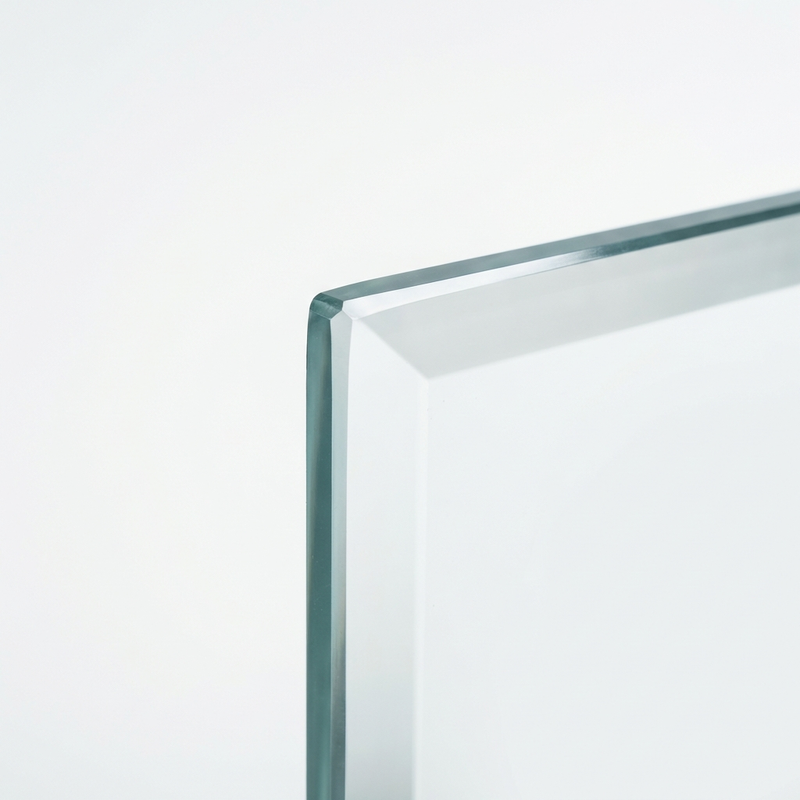

10mm Pyroguard Firesafe T-E30 - cut to size glass
Images are for illustration purposes only.

10mm Pyroguard Firesafe T-E30

SKU: TGSO-10MMPYROGUARDFIR

Fire Rated Glass — Request a Quote

Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.

mm
mm

Or call / WhatsApp: 07787 704925

Technical Specifications
ThicknessMultiple options available — see product title
Standard / CertificationBS EN 13501-2 (Fire Resistance Classification)
Maximum AreaPlease contact us for maximum size guidance
Lead TimeConfirmed in your order confirmation email
Edge TreatmentMachine polished as standard
FinishClear / as specified — tinted options available on request
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Timber framed screens (E30 single glazed)
Timber fire doors (E30 single glazed)
Steel framed screens (E30 single glazed)
Steel doorsets (E30 single glazed)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.

About This Product

10mm Pyroguard Firesafe T-E30 is a toughened, modified fire-resistant float glass providing 30 minutes of integrity protection (E30 classification). Part of the same certified Firesafe product family as the 6mm and 8mm variants, this thicker option is suitable for applications requiring enhanced rigidity, and is certified for use in timber and steel fire-rated frames.

Technical Specifications

  • Fire Classification: E30
  • Fire Rating: 30 minutes Integrity
  • Reaction to Fire: A1
  • Thickness: 10mm
  • Glazing Type: Single
  • Grade: Internal and External
  • Standard: BS EN 13501-2 / EN 572-2

Certified Applications

  • Timber framed screens (E30 single glazed)
  • Timber fire doors (E30 single glazed)
  • Steel framed screens (E30 single glazed)
  • Steel doorsets (E30 single glazed)

Frame Compatibility

  • Steel
  • Timber

Key Features

  • E30 fire classification — 30 minutes integrity
  • Reaction to fire class A1 — completely non-combustible
  • Toughened modified float glass — enhanced strength and robustness
  • Very high light transmission — excellent optical clarity
  • Easily processed and fabricated — cut-outs, shapes, and custom sizes available
  • Manufactured in accordance with EN 572-2
  • Fully recyclable
  • Suitable for interior and exterior use
  • Certifire approved

Important Information

Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.

  • Edge clearance: 4–5mm required
  • Lateral clearance: 4–5mm required
  • Rebate depth: minimum 20mm
  • Operating temperature range: -20°C to +40°C
  • Store in dry, ventilated conditions away from direct sunlight
  • Never allow water contact with glass edges
