114mm pyroguard ew60 600

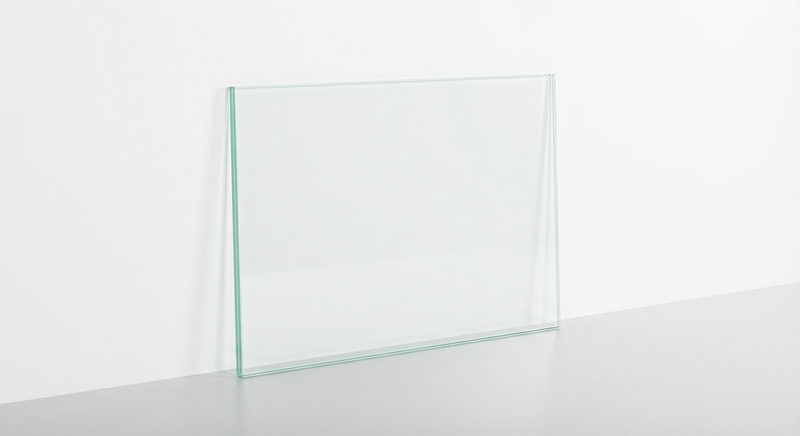

Images are for illustration purposes only.

11.4mm Pyroguard EW60 - 60/0

SKU: TGSO-114MMPYROGUARDEW

Fire Rated Glass — Request a Quote

Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.

mm
mm

Or call / WhatsApp: 07787 704925

Technical Specifications
ThicknessMultiple options available — see product title
Standard / CertificationBS EN 13501-2 (Fire Resistance Classification)
Maximum AreaPlease contact us for maximum size guidance
Lead TimeConfirmed in your order confirmation email
Edge TreatmentMachine polished as standard
FinishClear / as specified — tinted options available on request
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Steel framed screens (30/0 single glazed)
Steel framed screens (90/0 single glazed)
Timber framed screens (30/0 single glazed)
Timber framed screens (60/0 single glazed)
Timber based doorsets (30/0 single glazed)
Timber based doorsets (60/0 single glazed)
Timber steel & rail doorsets (30/0 single glazed)
IGUs in steel framed screens (30/0)
IGUs in timber framed screens (30/0)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.

About This Product

11.4mm Pyroguard is a multi-laminated fire-resistant glass providing up to 60 minutes integrity and radiated heat protection in certified systems. Combining excellent optical clarity with high acoustic performance and safety glazing classification, it is suitable for a wide range of commercial fire-rated applications in steel, timber, and aluminium framing systems.

Technical Specifications

  • Fire Classification: EW30 / up to EW60 (system-dependent, per CF257)
  • Fire Rating: Up to 60 minutes Integrity (application-dependent)
  • Thickness: 11.4mm (nominal 11mm)
  • Impact Classification: 2(B)2 (EN 12600)
  • Light Transmission: 88%
  • Sound Reduction: 35 dB
  • U Value: 5.5 W/m²K
  • UV Stability: Yes
  • Grade: Internal and External
  • Standard: BS EN 13501-2
  • Certifire Certificate: CF257

Certified Applications

  • Steel framed screens (30/0 single glazed)
  • Steel framed screens (90/0 single glazed)
  • Timber framed screens (30/0 single glazed)
  • Timber framed screens (60/0 single glazed)
  • Timber based doorsets (30/0 single glazed)
  • Timber based doorsets (60/0 single glazed)
  • Timber steel & rail doorsets (30/0 single glazed)
  • IGUs in steel framed screens (30/0)
  • IGUs in timber framed screens (30/0)

Frame Compatibility

  • Steel
  • Timber
  • Aluminium

Key Features

  • Up to EW60 / 90 fire classification in certified system configurations
  • 2(B)2 impact classification — meets safety glazing requirements
  • High light transmission (88%) — excellent clarity
  • 35 dB sound reduction for enhanced acoustic performance
  • Suitable for interior and exterior use
  • Double-sided fire resistance
  • UV stable — no yellowing or discolouration over time
  • Certifire approved (CF257)

Important Information

Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.

  • Edge clearance: 4–5mm required
  • Lateral clearance: 4–5mm required
  • Rebate depth: minimum 20mm
  • Operating temperature range: -20°C to +40°C
  • Store in dry, ventilated conditions away from direct sunlight
  • Never allow water contact with glass edges
