Images are for illustration purposes only.

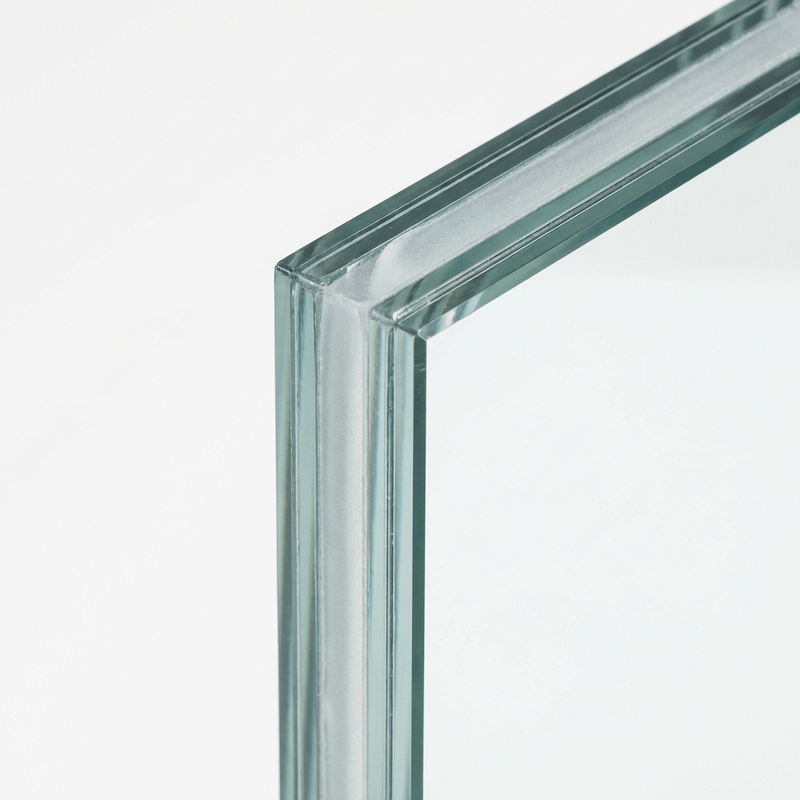

18mm Pyrostop EI30 EXT - 60/30
SKU: TGSO-18MMPYROSTOPEI30
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Technical Specifications
| Thickness | Multiple options available — see product title |
| Standard / Certification | BS EN 13501-2 (Fire Resistance Classification) |
| Maximum Area | Please contact us for maximum size guidance |
| Lead Time | Confirmed in your order confirmation email |
| Edge Treatment | Machine polished as standard |
| Finish | Clear / as specified — tinted options available on request |
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Aluminium framed fire doors — SAPA system (30/0 single glazed)
Steel framed screens (30/0 single glazed)
Fire partitions and compartmentation in steel and aluminium systems
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
18mm Pyrostop EI30 EXT is an external-grade, fully insulating laminated fire-resistant glass providing 30 minutes of both integrity and insulation (EI30 classification). Featuring enhanced burglar resistance (P2A) and certified for use in aluminium framed systems, it is well-suited to high-security fire door and screen applications in demanding exterior environments.
Technical Specifications
- Fire Classification: EI30
- Fire Rating: 30 minutes Integrity / 30 minutes Insulation
- Reaction to Fire: B-s1,d0
- Burglar Resistance: P2A
- Thickness: 18mm
- Thickness Tolerance: ±1mm
- Impact Classification: 1(B)1 (EN 12600)
- Sound Reduction: 38 dB (0;-2)
- U Value: 5.0 W/m²K
- Light Transmittance: 0.87
- g Value: 0.71
- Temperature Tolerance: 40K
- Grade: External
- Standard: BS EN 13501-2
- Certifire Certificate: CF328
Certified Applications
- Aluminium framed fire doors — SAPA system (30/0 single glazed)
- Steel framed screens (30/0 single glazed)
- Fire partitions and compartmentation in steel and aluminium systems
Frame Compatibility
- Steel
- Timber
- Aluminium (SAPA systems)
Key Features
- EI30 fire classification — 30 minutes integrity and insulation
- External grade — approved for exterior-facing applications
- Burglar resistance P2A — high-security performance
- 38 dB sound reduction — good acoustic separation
- Fully laminated insulating construction
- Reaction to fire class B-s1,d0
- Certifire approved (CF328)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
