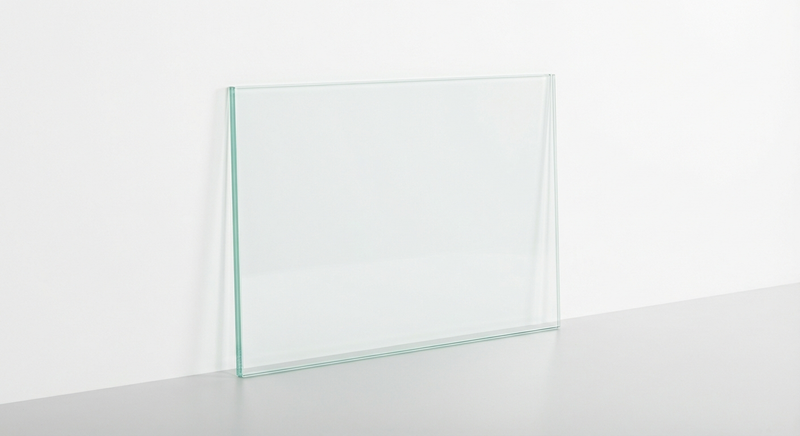

Images are for illustration purposes only.
27mm Pyroguard EI60 - 60/60
SKU: TGSO-27MMPYROGUARDEI6
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Processing Options
Sandblasting
Request a frosted finish as part of your quotation.
Ritec ClearShield Coating
Request an easy-clean coating as part of your quotation.
Cut-outs
Describe your required cut-outs in the enquiry notes.
Request these options in the enquiry form above. Suitability and pricing will be confirmed in your quotation. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Steel based doorsets (60/60 single glazed)
Timber based doorsets (60/60 single glazed)
Steel framed screens (60/60 single glazed)
Timber framed screens (60/60 single glazed)
IGUs in steel framed screens (60/60)
IGUs in timber framed screens (60/60)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
27mm Pyroguard EI60 is a multi-laminated fire-resistant glass in external grade, providing full 60 minutes of both integrity and insulation (EI60 classification). Designed for the most demanding fire compartmentation applications, it is the external-grade counterpart to the 23mm internal version and is certified for use in steel and timber framed systems.
Technical Specifications
- Fire Classification: EI60
- Fire Rating: 60 minutes Integrity / 60 minutes Insulation
- Thickness: 27mm
- Thickness Tolerance: ±1mm
- Glazing Type: Single
- Grade: External
- Standard: BS EN 13501-2
- Certifire Certificate: CF437
Certified Applications
- Steel based doorsets (60/60 single glazed)
- Timber based doorsets (60/60 single glazed)
- Steel framed screens (60/60 single glazed)
- Timber framed screens (60/60 single glazed)
- IGUs in steel framed screens (60/60)
- IGUs in timber framed screens (60/60)
Frame Compatibility
- Steel
- Timber
Key Features
- EI60 fire classification — full 60 minutes integrity and insulation
- External grade — approved for exterior-facing applications
- Multi-laminated construction with intumescent interlayers
- Intumescent layers expand at 120°C to seal and insulate the glazing
- Interior and exterior use (depending on system and glass type)
- Compatible with steel, aluminium, and timber framing systems
- Certifire approved (CF437)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
