Images are for illustration purposes only.
7mm Georgian Wired GWPP - 30/0
SKU: TGSO-7MMGEORGIANWIRED
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Processing Options
Sandblasting
Request a frosted finish as part of your quotation.
Ritec ClearShield Coating
Request an easy-clean coating as part of your quotation.
Cut-outs
Describe your required cut-outs in the enquiry notes.
Request these options in the enquiry form above. Suitability and pricing will be confirmed in your quotation. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Fire doors — vision panels and full glazed leaf (30/0)
Fire screens and partitions (30/0)
Heritage and traditional building fire-rated glazing
Compatible with systems accepting clear wired glass per relevant Certifire certificates
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product

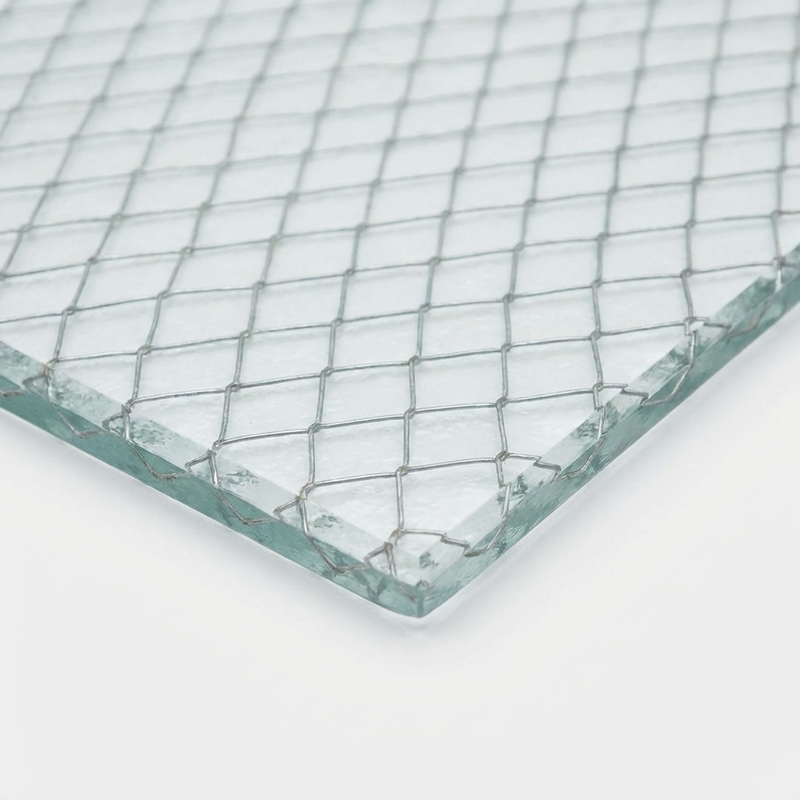

7mm Georgian Wired GWPP (Georgian Polished Wired Plate) is a traditional wired fire-resistant glass providing 30 minutes of integrity protection (E30 classification). Combining a classic wire mesh appearance with fire performance, it is ideal for heritage buildings, traditional architecture, and applications where the wired glass aesthetic is required alongside fire safety compliance.
Technical Specifications
- Fire Classification: E30
- Fire Rating: 30 minutes Integrity
- Thickness: 7mm (nominal)
- Glazing Type: Single
- Grade: Internal
- Standard: BS EN 13501-2
Certified Applications
- Fire doors — vision panels and full glazed leaf (30/0)
- Fire screens and partitions (30/0)
- Heritage and traditional building fire-rated glazing
- Compatible with systems accepting clear wired glass per relevant Certifire certificates
Frame Compatibility
- Steel
- Timber
Key Features
- E30 fire classification — 30 minutes integrity
- Traditional Georgian wired polished plate glass appearance
- Wire mesh embedded within the glass for cohesion during fire exposure
- Classic aesthetic suited to heritage and period buildings
- Interior use
- Compatible with fire door and screen systems accepting clear wired glass
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
