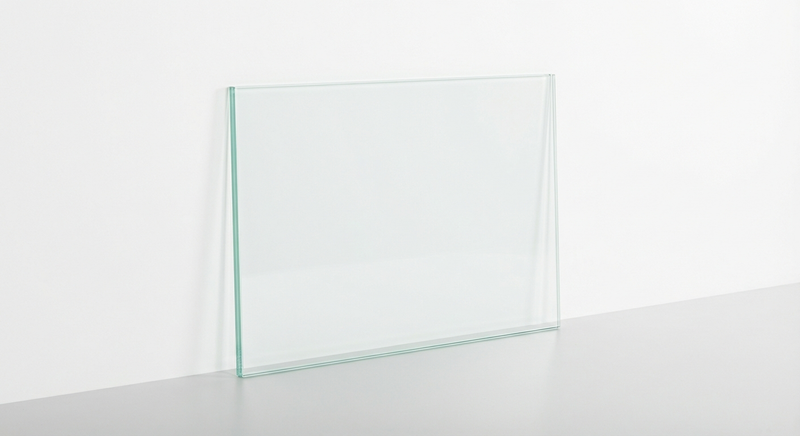

Images are for illustration purposes only.
7mm Pyrodur EW30 - 30/0
SKU: TGSO-7MMPYRODUREW3030
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Processing Options
Sandblasting
Request a frosted finish as part of your quotation.
Ritec ClearShield Coating
Request an easy-clean coating as part of your quotation.
Cut-outs
Describe your required cut-outs in the enquiry notes.
Request these options in the enquiry form above. Suitability and pricing will be confirmed in your quotation. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Timber fire-rated frames — single and double-glazed (30/0)
Ideal for fire door vision panels in timber frames
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
7mm Pyrodur EW30 is a toughened borosilicate fire-resistant glass providing 30 minutes of integrity and radiated heat protection (EW30 classification). Its high-impact resistance (3(B)3) makes it ideal for fire door applications, and it can be used in both single and double-glazed configurations in timber framed fire-rated systems.
Technical Specifications
- Fire Classification: EW30
- Fire Rating: 30 minutes Integrity / Radiated Heat Protection
- Thickness: 7mm
- Impact Classification: 3(B)3 (EN 12600)
- Grade: Internal
- Standard: BS EN 13501-2
- Certifire Certificate: CF328
Certified Applications
- Timber fire-rated frames — single and double-glazed (30/0)
- Ideal for fire door vision panels in timber frames
Frame Compatibility
- Timber
Key Features
- EW30 fire classification — 30 minutes integrity and radiated heat control
- 3(B)3 impact classification — highest pendulum body impact resistance
- Toughened borosilicate construction
- Suitable for single glazed and double glazed unit (DGU) applications
- Ideal for fire door vision panels
- Interior use only
- Recognised by fire and building control authorities
- Certifire approved (CF328)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
