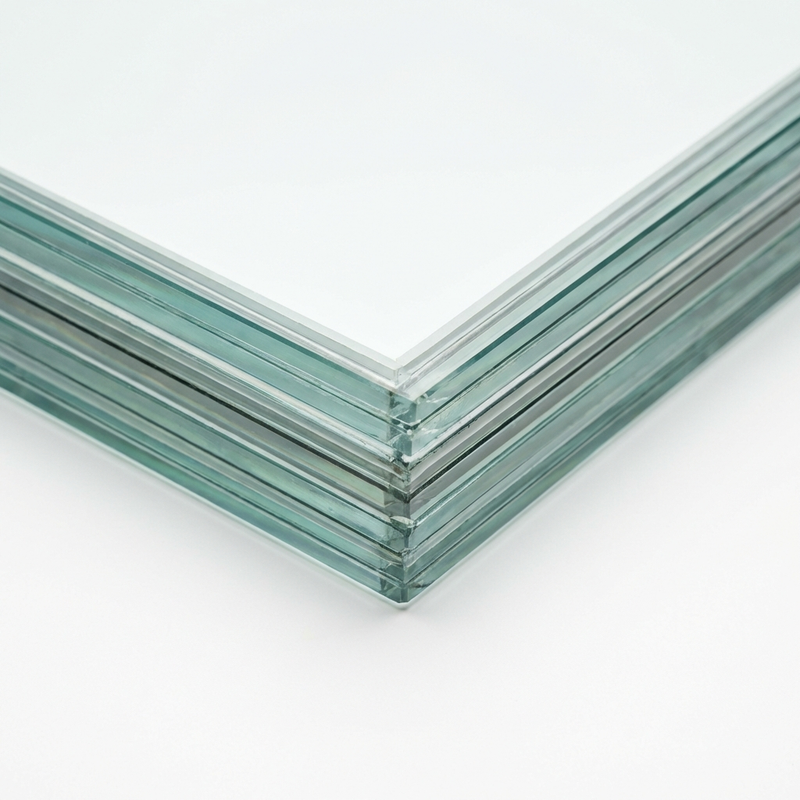

Images are for illustration purposes only.
Pyrobel 25 EXT EI60 - 60/60
SKU: TGSO-PYROBEL25EXTEI60
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Processing Options
Sandblasting
Request a frosted finish as part of your quotation.
Ritec ClearShield Coating
Request an easy-clean coating as part of your quotation.
Cut-outs
Describe your required cut-outs in the enquiry notes.
Request these options in the enquiry form above. Suitability and pricing will be confirmed in your quotation. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Steel doorsets (60/60 single glazed)
Timber doorsets — hardwood (60/60 single glazed)
Timber doorsets — softwood (60/60 single glazed)
Steel framed screens (60/60 single glazed)
Timber framed screens (60/60 single glazed — clear and wired)
IGUs in steel framed screens (60/60)
IGUs in timber framed screens (60/60)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
Pyrobel 25 EXT EI60 is the external-grade version of the Pyrobel 25, a multi-laminated fire-resistant glass providing full 60 minutes of both integrity and insulation (EI60 classification). Designed for external and exposed applications, it is suited for the most demanding fire compartmentation requirements in commercial construction.
Technical Specifications
- Fire Classification: EI60
- Fire Rating: 60 minutes Integrity / 60 minutes Insulation
- Thickness: 30.4mm (nominal 25mm EXT)
- Thickness Tolerance: ±2mm
- Weight: 68 kg/m²
- Glazing Type: Single
- Grade: External
- Standard: BS EN 13501-2
- Certifire Certificate: CF377
Certified Applications
- Steel doorsets (60/60 single glazed)
- Timber doorsets — hardwood (60/60 single glazed)
- Timber doorsets — softwood (60/60 single glazed)
- Steel framed screens (60/60 single glazed)
- Timber framed screens (60/60 single glazed — clear and wired)
- IGUs in steel framed screens (60/60)
- IGUs in timber framed screens (60/60)
Frame Compatibility
- Steel
- Timber (hardwood and softwood)
Key Features
- EI60 fire classification — full 60 minutes integrity and insulation
- External grade — approved for exterior-facing applications
- Multi-laminated construction with intumescent interlayers
- Intumescent layers expand at 120°C to maintain fire barrier
- Butt-jointed glazing applications possible in steel systems
- Certifire approved (CF377)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
