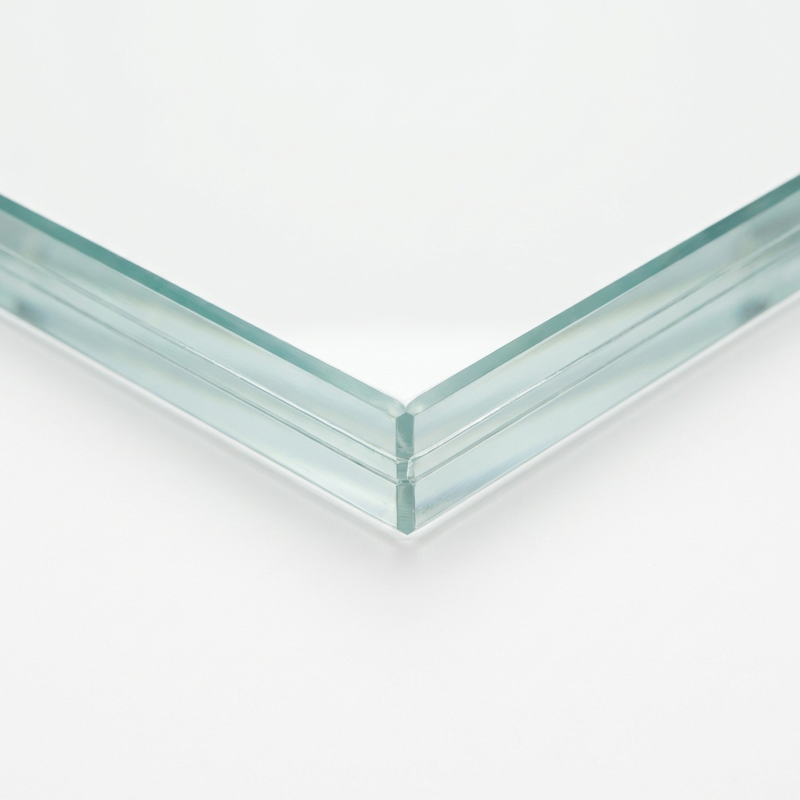

Pyrobelite 7 EW60 - 60/0 - cut to size glass
Images are for illustration purposes only.

Pyrobelite 7 EW60 - 60/0

SKU: TGSO-PYROBELITE7EW606

Fire Rated Glass — Request a Quote

Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.

mm
mm

Or call / WhatsApp: 07787 704925

Technical Specifications
ThicknessMultiple options available — see product title
Standard / CertificationBS EN 13501-2 (Fire Resistance Classification)
Maximum AreaPlease contact us for maximum size guidance
Lead TimeConfirmed in your order confirmation email
Edge TreatmentMachine polished as standard
FinishClear / as specified — tinted options available on request
Processing Options
Polished Edges
Included as standard — all edges machine polished smooth, safe to handle.
Dubbed Corners
Manual sanding / small removal of the sharp corner point — free of charge.
Radius Corners
Free of charge for standard 3mm or 5mm radius. For larger radius, select custom shaping and attach a drawing.
Holes / Drilling
Pre-drilled fixing holes (standard 10–12mm). £4 per hole (£8 for toughened laminated).
Cut-outs
Rectangular notch cut-outs for sockets, handles, etc. £25+VAT each (£50+VAT for toughened laminated).
Sandblasting
Decorative frosted finish for privacy or aesthetics. Price on application.
Ritec ClearShield Coating
Nano easy-clean coating — repels water, limescale & dirt. POA.
Back Painting
Solid colour paint on the reverse — ideal for splashbacks. Specify RAL code. POA.
Select your required options in the configurator above. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Steel framed screens (30/0 and 60/0 single glazed)
Timber framed screens (30/0 and 60/0 single glazed)
Timber based doorsets (30/0 single glazed)
IGUs in timber framed screens (30/0)
IGUs in steel doorsets (30/0)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.

About This Product

Pyrobelite 7 EW60 is a laminated fire-resistant glass providing up to 60 minutes of integrity protection in certified system configurations. A low-radiation product for interior use, it extends the Pyrobelite 7 range into 60-minute applications when used in appropriate timber and steel framed glazing systems.

Technical Specifications

  • Fire Classification: E30 / E60 (system-dependent)
  • Fire Rating: Up to 60 minutes Integrity (application-dependent)
  • Thickness: 7.9mm
  • Thickness Tolerance: ±0.9mm
  • Weight: 17 kg/m²
  • Glazing Type: Single
  • Grade: Internal
  • Standard: BS EN 13501-2
  • Certifire Certificate: CF377

Certified Applications

  • Steel framed screens (30/0 and 60/0 single glazed)
  • Timber framed screens (30/0 and 60/0 single glazed)
  • Timber based doorsets (30/0 single glazed)
  • IGUs in timber framed screens (30/0)
  • IGUs in steel doorsets (30/0)

Frame Compatibility

  • Steel
  • Timber

Key Features

  • Up to E60 fire classification in appropriate system configurations
  • Low radiation glass — limits radiated heat transfer
  • Lightweight construction at 17 kg/m²
  • Interior use only
  • Suitable for timber and steel fire-rated systems
  • Certifire approved (CF377)

Important Information

Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.

  • Edge clearance: 4–5mm required
  • Lateral clearance: 4–5mm required
  • Rebate depth: minimum 20mm
  • Operating temperature range: -20°C to +40°C
  • Store in dry, ventilated conditions away from direct sunlight
  • Never allow water contact with glass edges
