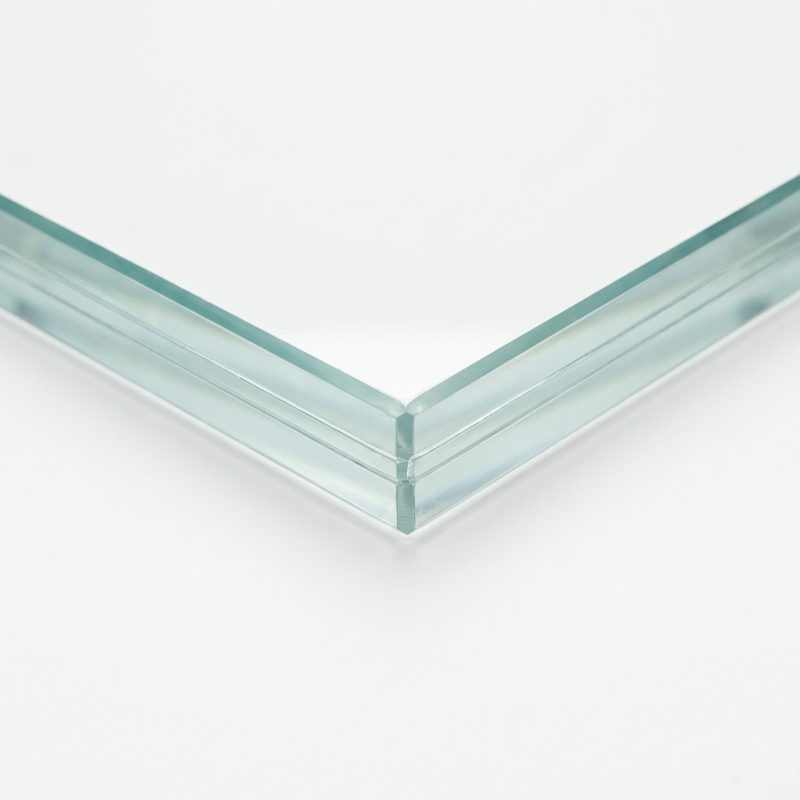

Images are for illustration purposes only.
Pyrobelite 9EG EW30 - 30/0
SKU: TGSO-PYROBELITE9EGEW3
Fire Rated Glass — Request a Quote
Fire rated glass is manufactured to order to your exact specification. Complete the form below and we'll come back to you with a detailed quote.
Processing Options
Sandblasting
Request a frosted finish as part of your quotation.
Ritec ClearShield Coating
Request an easy-clean coating as part of your quotation.
Cut-outs
Describe your required cut-outs in the enquiry notes.
Request these options in the enquiry form above. Suitability and pricing will be confirmed in your quotation. For bespoke requirements, call 020 7206 2492.
Applications & Uses
Steel framed screens (30/0 single glazed)
Timber framed screens (30/0 single glazed)
Timber based doorsets (30/0 single glazed)
IGUs in timber framed screens (30/0)
IGUs in steel doorsets (30/0)
Not sure if this glass type suits your application? Call our team on 020 7206 2492 for free advice.
About This Product
Pyrobelite 9EG EW30 is an external-grade, laminated fire-resistant glass providing 30 minutes of integrity protection (E30 classification). Suitable for both interior and exterior applications, it is a low-radiation fire glazing solution for use in timber, steel, and aluminium framed screens and doorsets, including double-glazed units.
Technical Specifications
- Fire Classification: E30
- Fire Rating: 30 minutes Integrity
- Thickness: 12.06mm
- Thickness Tolerance: ±1.5mm
- Weight: 28 kg/m²
- Glazing Type: Single
- Grade: External
- Standard: BS EN 13501-2
- Certifire Certificate: CF377
Certified Applications
- Steel framed screens (30/0 single glazed)
- Timber framed screens (30/0 single glazed)
- Timber based doorsets (30/0 single glazed)
- IGUs in timber framed screens (30/0)
- IGUs in steel doorsets (30/0)
Frame Compatibility
- Steel
- Timber
- Aluminium
Key Features
- E30 fire classification — 30 minutes integrity
- External grade — approved for interior and exterior use
- Low radiation glass — limits radiated heat transfer
- Compatible with sealed double-glazed units
- Suitable for timber, steel, and aluminium fire-rated systems
- Certifire approved (CF377)
Important Information
Fire-rated glass must only be used as part of an appropriately approved and tested glazing system. Installation should be carried out by FIRAS-approved specialists in accordance with the relevant Certifire certificate specifications.
- Edge clearance: 4–5mm required
- Lateral clearance: 4–5mm required
- Rebate depth: minimum 20mm
- Operating temperature range: -20°C to +40°C
- Store in dry, ventilated conditions away from direct sunlight
- Never allow water contact with glass edges
